General Particulars
Vessel Type Utility-Construction/ SPS Barge
Year Built/ Builder 2014/ Dubai Shipbuilding & Engineering LLC, U.A.E.
Classification B.V. 1+HULL+MACH+AUT_UMS+ DYNAPOS AM/AT R HEL(Y) SPECIAL SERVICE/ UTILITY-CONSTRUCTION VESSEL, ASSISTED PROPULSION, SPS compliant
Flag/ Owner United Arab Emirates/ Mubarak Marine
Complement 30 Crew plus 176 Special Person

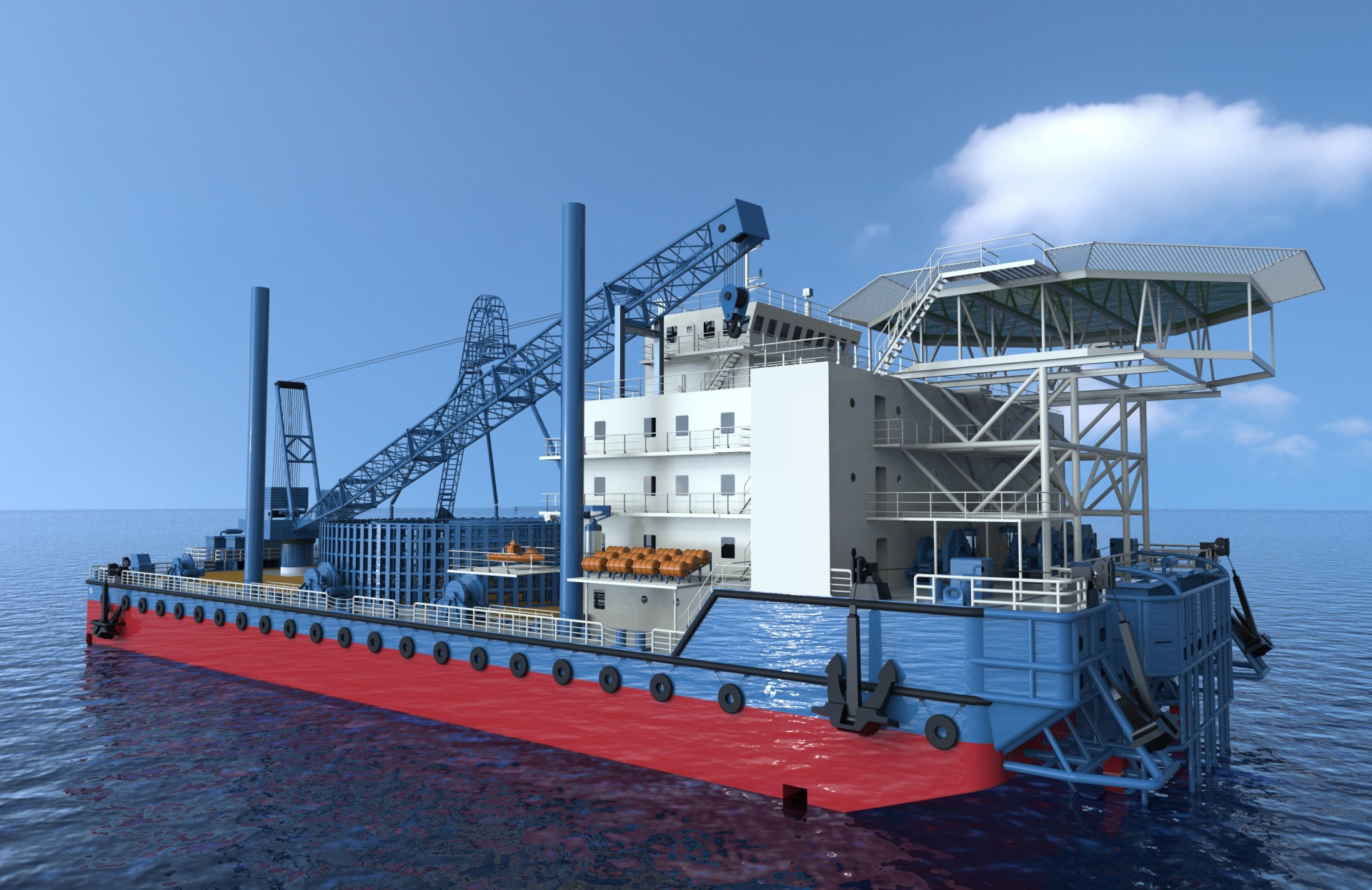

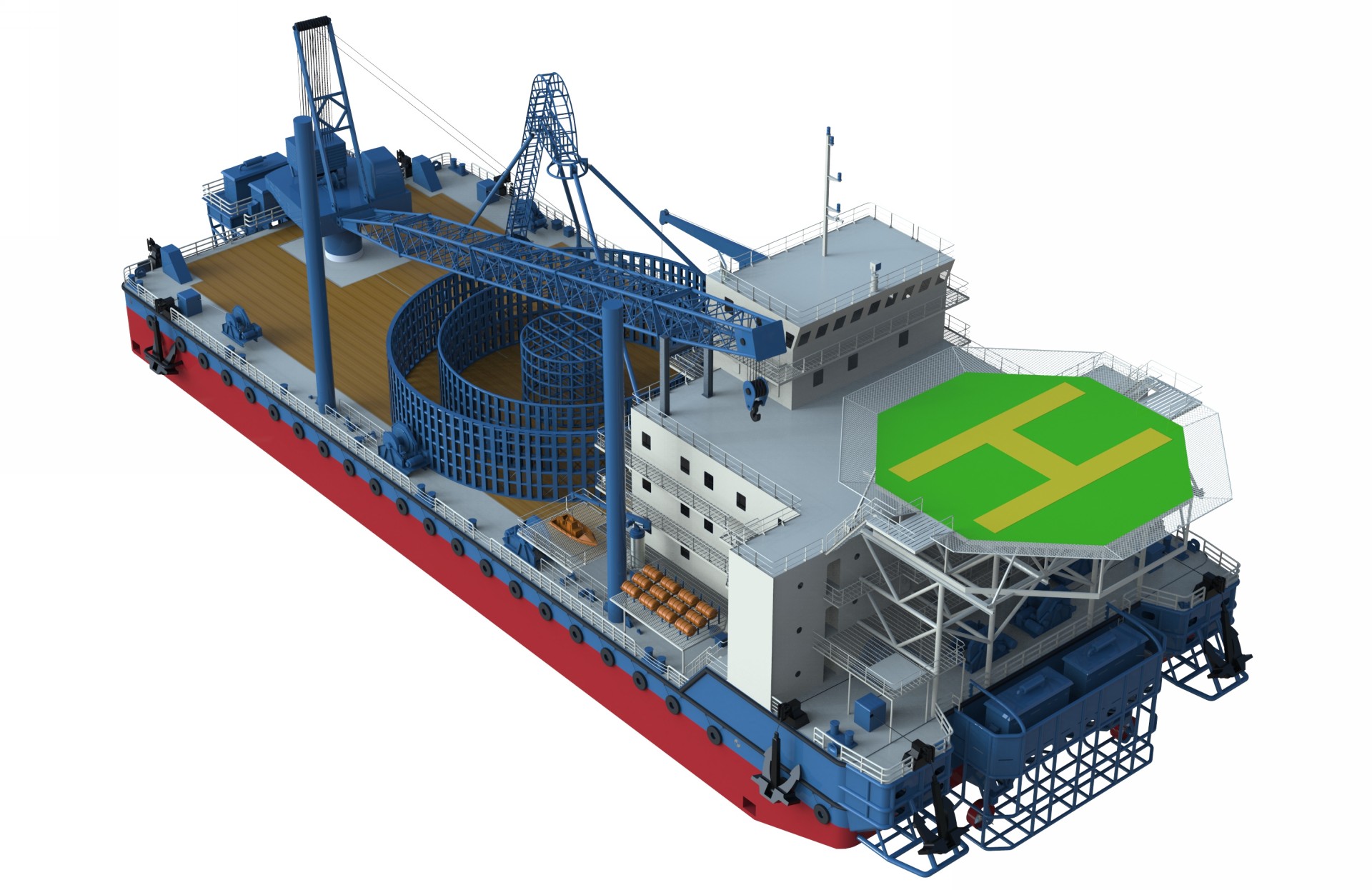

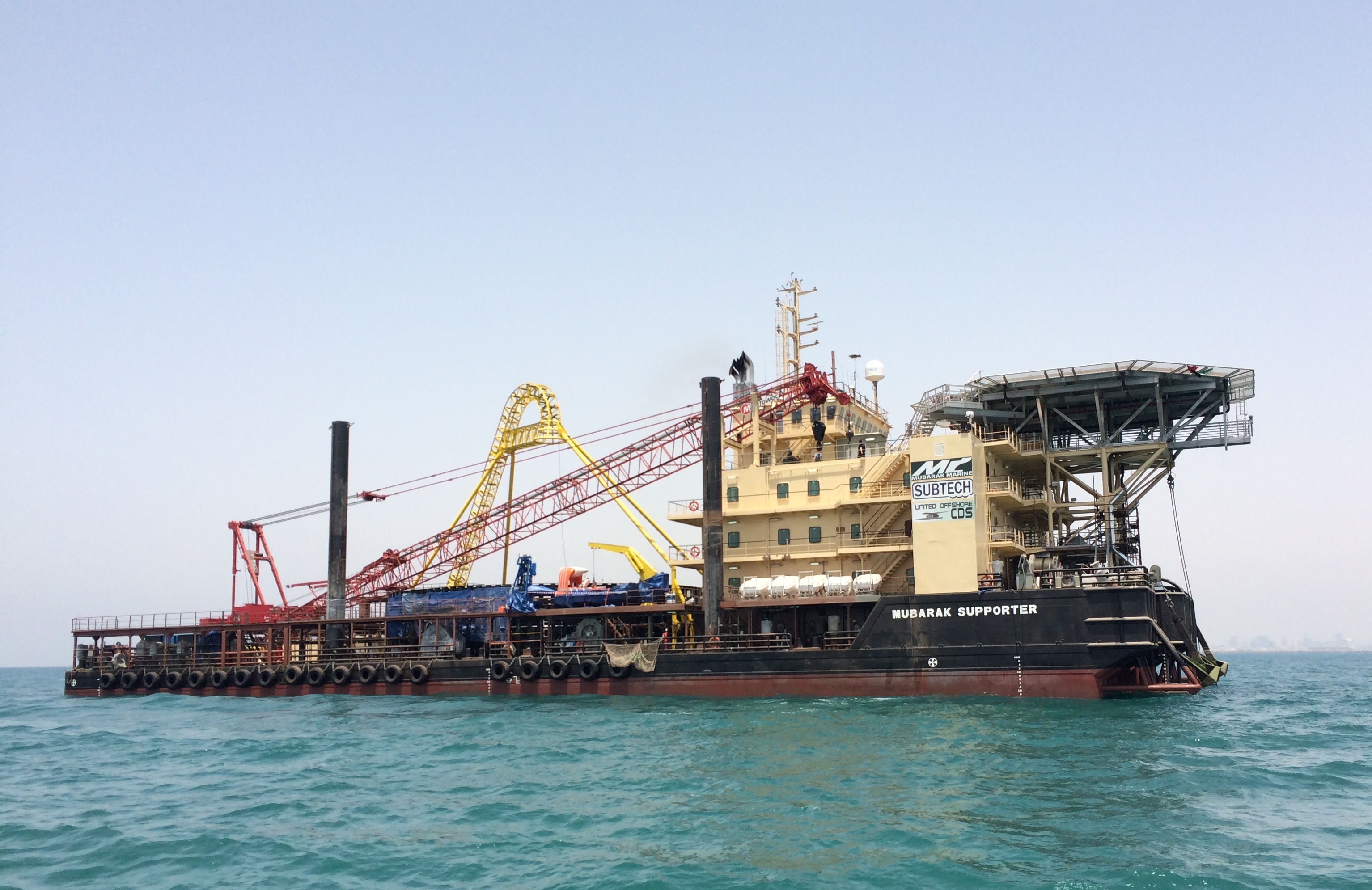

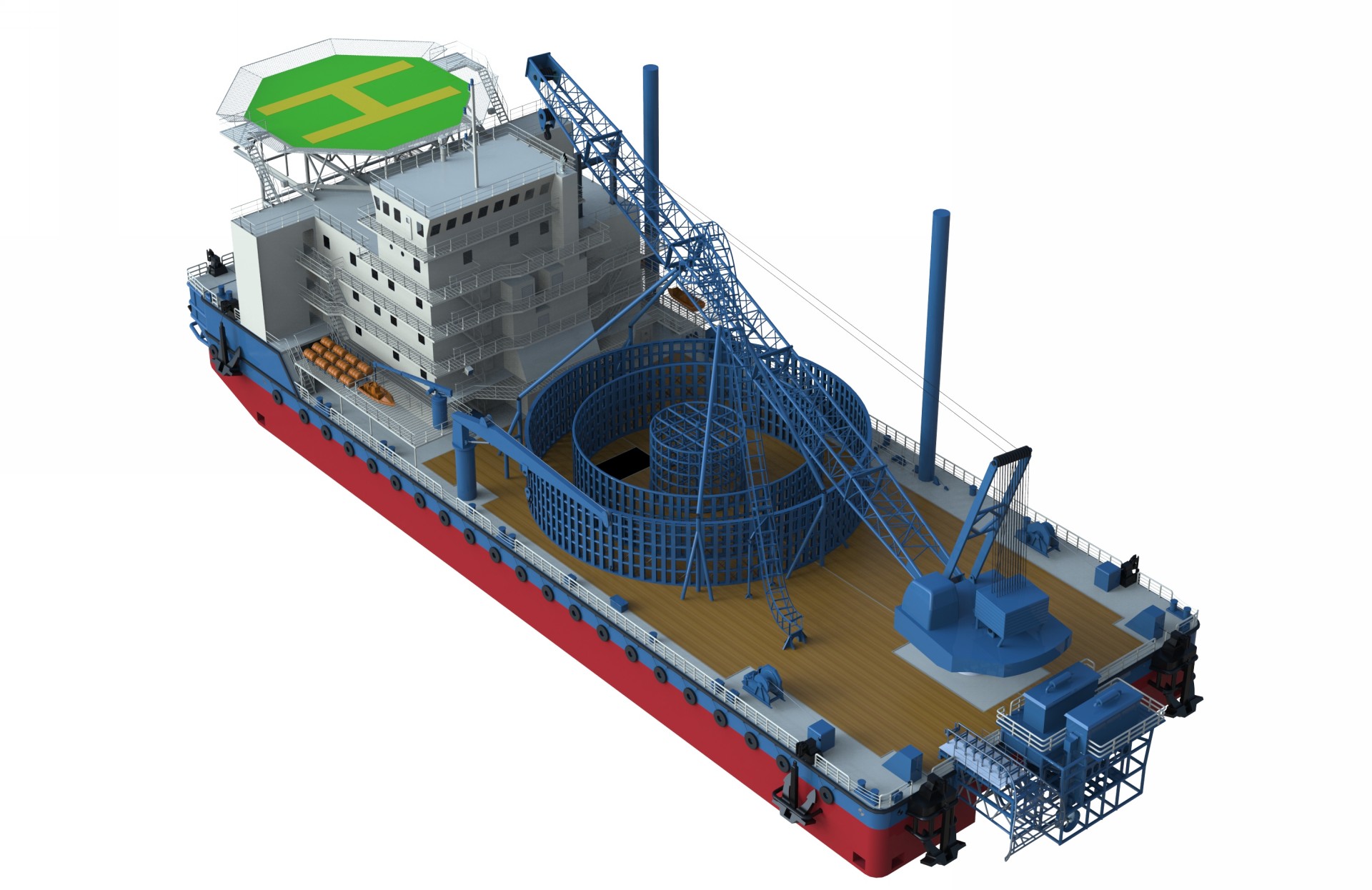

Final Name “MUBARAK SUPPORTER”
Dimension 95.00m LOA x 30.00m Beam x 5.50m Depth, draft 4.124m
Main Engine/Propulsion 3x Nos. 1,099 ekW Guascor SF480-SG Main Generator & back up by 2x Nos. 818 ekW Guascor SF360-SG to Drive the 4x Nos. 550 ekW Electric motor water jet Omega Thrusters. In addition, 4x Nos. HRP 4111 Deck Mounted Azimuth Thrusters 525 kW at 1800 rpm.

Avilable drawings for purchase
