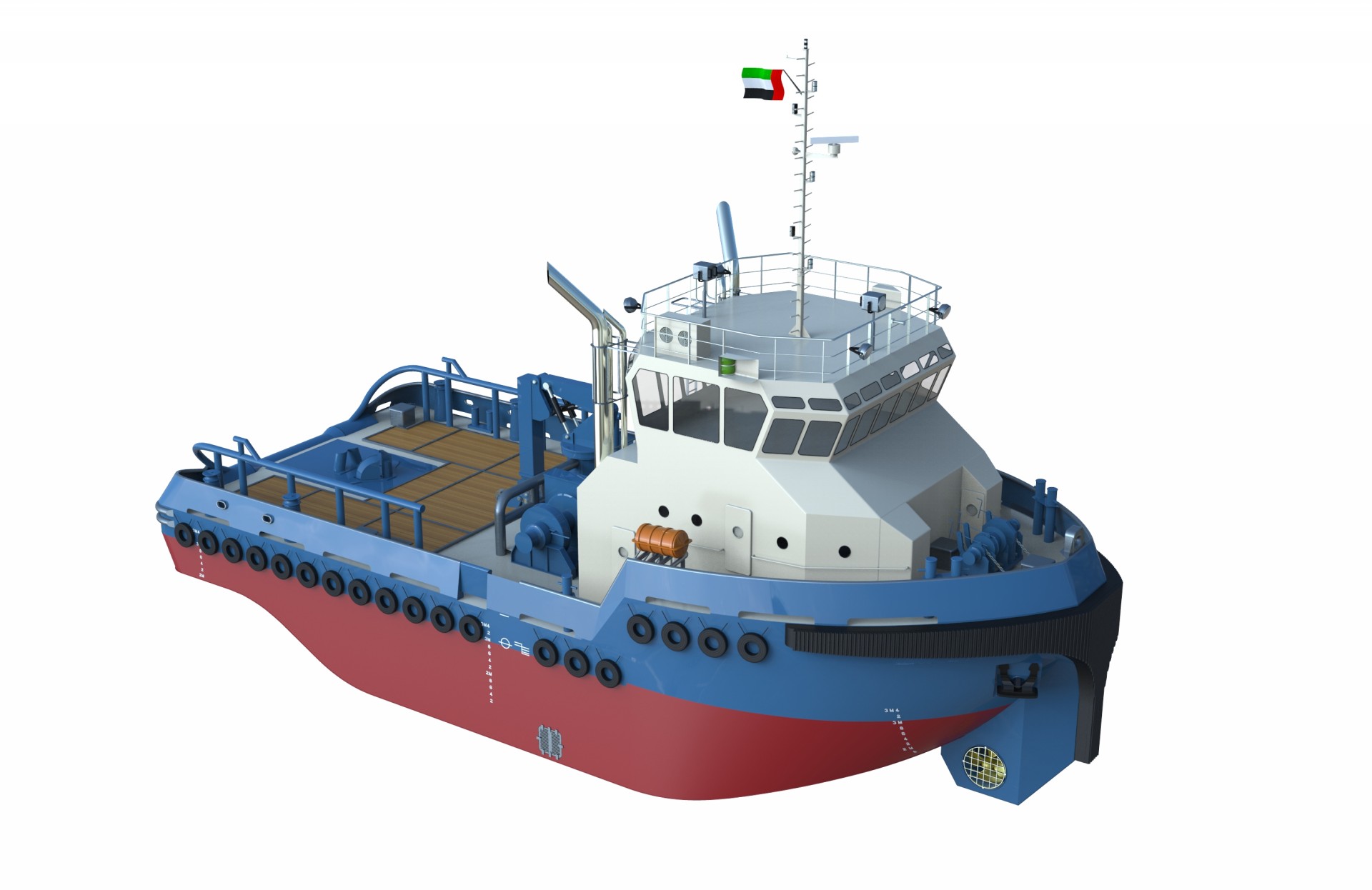

| Vessel Type | Anchor Handling Tug | |
| Year Built/ Builder | In progress/ Dubai Shipbuilding & Engineering LLC, U.A.E. | |
| Classification | BV 1 + Hull + Mach Tug/ Anchor Handling, Unrestricted Navigation | |
| Flag/ Owner | United Arab Emirates/ Mubarak Marine | |
| Complement | 16 Person | |
| Final Name | “MUBARAK HANDLER” | |
| Dimension | 27.50m LWL x 11.00m Beam x 3.80m Depth Mld. Draft, designed 3.00m | |
| Main Engine/Propulsion | 2x Guascor marine engine SF480TA-SP 1220 kW 1800 rpm + gearbox R500HT, 2x fixed pitch in Nozzle | |
| Bullard pull | - | |
| Shell Design Available | Class approved drawing & Fabrication 2D drawing |
Avilable drawings for purchase
- General arangement
- Pipings
